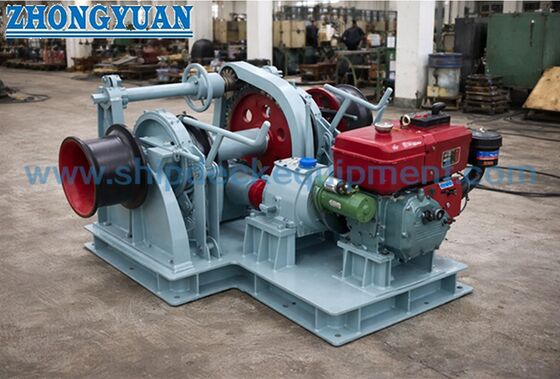

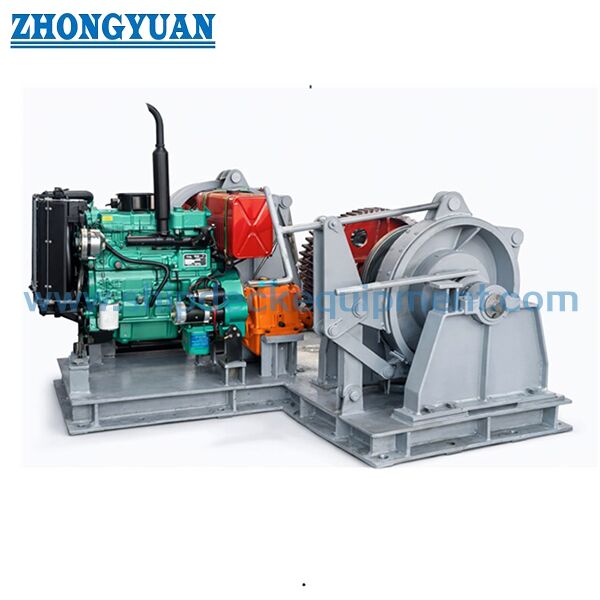

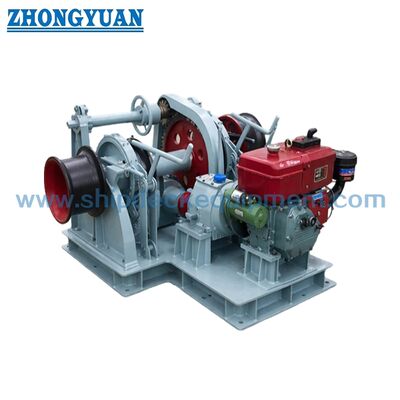

38mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Double Gypsy Windlass
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Zhongyuan Marine Equipment |
| Certificering: | CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS |
| Modelnummer: | standaard of op maat |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 eenheid |
|---|---|
| Prijs: | Based on quotation |
| Verpakking Details: | Exporteer standaardpallet of aangepaste verpakking |
| Levertijd: | Op basis van projectvereisten |
| Betalingscondities: | T/T, L/C |
| Levering vermogen: | Productie op maat op basis van projectvereisten |
|
Gedetailleerde informatie |
|||
| Ankerketendiameter: | 38 mm | Nominale trekbelasting: | 46,9kn |
|---|---|---|---|
| Kettingsnelheid: | 9m/min | Ondersteunende belasting: | 162,6KN |
| Dieselmotor: | S4100 | wormversnellingsbak: | WD190, enz. |
| Versnellingsbak: | 32F16A | Nummer zigeuner: | dubbel of enig |
| Kleur: | Opgegeven klant | Samenstelling: | Voornamelijk samengesteld uit een dieselmotor met hoofdmotor en elektrisch startsysteem, wormversnel |
| Classificatiecertificaten: | CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS | ||
Productomschrijving
38mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Double Gypsy Windlass
Product Overview
A 38mm marine anchor windlass is a type of ship deck equipment designed for anchoring and mooring operations using a 38mm anchor chain.
This diesel engine driven windlass provides stable pulling force, independent operation, and reliable performance in harsh marine environments. It is equipped with a gypsy wheel, gearbox, brake, and clutch system.
It is widely used in cargo ships, barges, and offshore vessels.
Quick Specifications
Chain Diameter: 38 mm
Chain Grade: Grade 2 / Grade 3
Working Load: 42–47 kN
Drive Type: Diesel Engine
Gypsy: Single / Double
Warping Head: Optional
Mooring Drum: Optional
Main Technical Parameters
|
Chain Size |
Gypsy Speed |
Working Load |
Holding Capacity |
|---|---|---|---|
| 36 / 38 mm | ≥9 m/min | 42.2 / 46.9 kN | 146.4 / 162.6 kN |
Anchor Windlass + Engine Selection
✔ Recommended Engine Power
For a 38mm anchor chain windlass:
Working Load: approx. 42–47 kN
Recommended Engine Power: 18–30 kW
✔ Selection Logic
Grade 2 chain → lower power requirement
Grade 3 chain → higher load, recommend higher power engine
Continuous operation → increase power margin
✔ Engineering Note
The final engine configuration should be selected based on classification society rules and actual working conditions.
Structure & Components
Structure & Components: Diesel engine | Worm gearbox | Gypsy wheel (for 38 mm chain) | Brake & clutch system | Base frame | Warping head (optional) | Mooring drum (optional)
How It Works
The diesel engine drives the windlass through a gearbox system.
The gypsy wheel engages the 38mm anchor chain to control anchoring and lifting operations, while the brake ensures safety.
Applications
Cargo ships | Barges | Offshore vessels | Port operations
Certifications & Advantages
Certifications
CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS
Advantages
Designed for 38 mm anchor chain | Stable pulling force | Independent diesel operation | Easy maintenance
Ordering Information
MOQ: 1 Unit
Delivery Time: 90 Days
Customization: Available
FAQ
Q1: Is this windlass suitable for Grade 3 chain?
Yes, it supports both Grade 2 and Grade 3 anchor chains.
Q2: Can I choose engine brand?
Yes, multiple engine brands are available.
Q3: What is the typical vessel size for 38mm windlass?
Usually medium-sized cargo vessels and barges.
